Introduction¶
Backpropagation computes the gradient \(\frac{\partial J}{\partial \theta}\), where \(\theta\) represents the model parameters. \(J\) is calculated using forward propagation and a loss function. The formula is:
$$ \frac{\partial J}{\partial \theta} = \lim_{\varepsilon \to 0} \frac{J(\theta + \varepsilon) - J(\theta - \varepsilon)}{2 \varepsilon} \tag{1}$$
Since forward propagation is relatively easy to implement and verify, we first ensure \(J\) is computed correctly. This allows us to validate the gradient calculation \(\frac{\partial J}{\partial \theta}\) using the numerical approximation method.
1D Gradient Check¶
For a linear function \(J(\theta) = \theta x\), the model has one real-valued parameter \(\theta\) with input \(x\).
The diagram shows key steps: forward propagation (calculating \(J\)) and backward propagation (calculating \(\frac{\partial J}{\partial \theta}\)).
Import Dependencies¶
First, import required libraries. Some utilities can be downloaded from here.
# coding=utf-8
from testCases import *
from gc_utils import sigmoid, relu, dictionary_to_vector, vector_to_dictionary, gradients_to_vector
Forward Propagation¶
Linear forward propagation function:
def forward_propagation(x, theta):
"""
Implements forward propagation for J(theta) = theta * x
Arguments:
x -- input value (scalar)
theta -- parameter (scalar)
Returns:
J -- value of function J
"""
J = theta * x
return J
Backward Propagation¶
Linear backward propagation function:
def backward_propagation(x, theta):
"""
Computes the derivative of J with respect to theta
Arguments:
x -- input value (scalar)
theta -- parameter (scalar)
Returns:
dtheta -- gradient of J with respect to theta
"""
dtheta = x
return dtheta
Gradient Check Execution¶
To check the gradient:
1. Compute \(\theta^{+} = \theta + \varepsilon\) and \(\theta^{-} = \theta - \varepsilon\)
2. Calculate \(J^{+} = J(\theta^{+})\) and \(J^{-} = J(\theta^{-})\)
3. Approximate gradient: \(gradapprox = \frac{J^{+} - J^{-}}{2\varepsilon}\)
4. Compare with backward propagation result using:
$$ difference = \frac{|\text{grad} - \text{gradapprox}|_2}{|\text{grad}|_2 + |\text{gradapprox}|_2} \tag{2}$$
def gradient_check(x, theta, epsilon=1e-7):
"""
Implements gradient checking
Arguments:
x -- input value (scalar)
theta -- parameter (scalar)
epsilon -- small shift to compute approximated gradient
Returns:
difference -- difference between grad and gradapprox
"""
thetaplus = theta + epsilon # Step 1
thetaminus = theta - epsilon # Step 2
J_plus = thetaplus * x # Step 3
J_minus = thetaminus * x # Step 4
gradapprox = (J_plus - J_minus) / (2 * epsilon) # Step 5
grad = backward_propagation(x, theta) # Get backward propagation gradient
numerator = np.linalg.norm(grad - gradapprox) # Step 1'
denominator = np.linalg.norm(grad) + np.linalg.norm(gradapprox) # Step 2'
difference = numerator / denominator # Step 3'
if difference < 1e-7:
print("Gradient is correct!")
else:
print("Gradient is incorrect!")
return difference
if __name__ == "__main__":
x, theta = 2, 4
difference = gradient_check(x, theta)
print("difference = " + str(difference))
Output:
Gradient is correct!
difference = 2.91933588329e-10
Multi-dimensional Gradient Check¶
For multi-dimensional parameters, we extend the gradient check to parameter dictionaries.

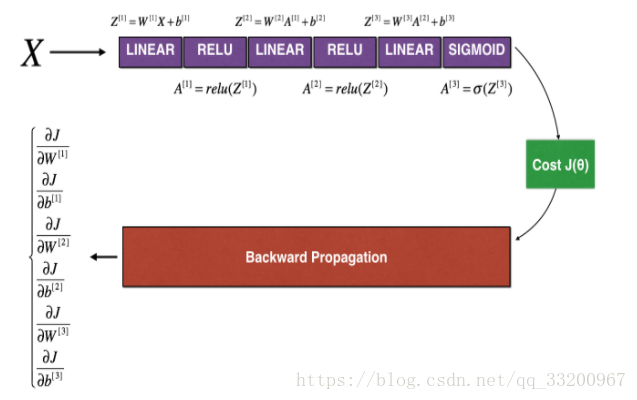

LINEAR -> RELU -> LINEAR -> RELU -> LINEAR -> SIGMOID
Forward Propagation¶
Multi-dimensional forward propagation:
def forward_propagation_n(X, Y, parameters):
"""
Implements forward propagation (and computes cost)
Arguments:
X -- training set, shape (input size, m)
Y -- labels, shape (1, m)
parameters -- dictionary of parameters (W1, b1, W2, b2, W3, b3)
Returns:
cost -- computed cost
cache -- intermediate values for backward propagation
"""
m = X.shape[1]
W1 = parameters["W1"]
b1 = parameters["b1"]
W2 = parameters["W2"]
b2 = parameters["b2"]
W3 = parameters["W3"]
b3 = parameters["b3"]
Z1 = np.dot(W1, X) + b1
A1 = relu(Z1)
Z2 = np.dot(W2, A1) + b2
A2 = relu(Z2)
Z3 = np.dot(W3, A2) + b3
A3 = sigmoid(Z3)
logprobs = np.multiply(-np.log(A3), Y) + np.multiply(-np.log(1 - A3), 1 - Y)
cost = 1. / m * np.sum(logprobs)
cache = (Z1, A1, W1, b1, Z2, A2, W2, b2, Z3, A3, W3, b3)
return cost, cache
Backward Propagation¶
Multi-dimensional backward propagation:
def backward_propagation_n(X, Y, cache):
"""
Implements backward propagation
Arguments:
X -- input data
Y -- true labels
cache -- output from forward_propagation_n
Returns:
gradients -- dictionary of gradients
"""
m = X.shape[1]
(Z1, A1, W1, b1, Z2, A2, W2, b2, Z3, A3, W3, b3) = cache
dZ3 = A3 - Y
dW3 = 1. / m * np.dot(dZ3, A2.T)
db3 = 1. / m * np.sum(dZ3, axis=1, keepdims=True)
dA2 = np.dot(W3.T, dZ3)
dZ2 = np.multiply(dA2, np.int64(A2 > 0))
dW2 = 1. / m * np.dot(dZ2, A1.T) * 2 # ERROR: Should be 1.0
db2 = 1. / m * np.sum(dZ2, axis=1, keepdims=True)
dA1 = np.dot(W2.T, dZ2)
dZ1 = np.multiply(dA1, np.int64(A1 > 0))
dW1 = 1. / m * np.dot(dZ1, X.T)
db1 = 4. / m * np.sum(dZ1, axis=1, keepdims=True) # ERROR: Should be 1.0
gradients = {"dZ3": dZ3, "dW3": dW3, "db3": db3,
"dA2": dA2, "dZ2": dZ2, "dW2": dW2, "db2": db2,
"dA1": dA1, "dZ1": dZ1, "dW1": dW1, "db1": db1}
return gradients
Multi-dimensional Gradient Check¶
Iterate over each parameter to compute approximation:
def gradient_check_n(parameters, gradients, X, Y, epsilon=1e-7):
"""
Checks if backward_propagation_n computes gradients correctly
Arguments:
parameters -- dictionary of parameters
gradients -- gradients from backward_propagation_n
X -- input data
Y -- labels
epsilon -- small shift to compute approximated gradient
Returns:
difference -- difference between grad and gradapprox
"""
parameters_values, _ = dictionary_to_vector(parameters)
grad = gradients_to_vector(gradients)
num_parameters = parameters_values.shape[0]
J_plus = np.zeros((num_parameters, 1))
J_minus = np.zeros((num_parameters, 1))
gradapprox = np.zeros((num_parameters, 1))
for i in range(num_parameters):
thetaplus = np.copy(parameters_values)
thetaplus[i][0] += epsilon
J_plus[i], _ = forward_propagation_n(X, Y, vector_to_dictionary(thetaplus))
thetaminus = np.copy(parameters_values)
thetaminus[i][0] -= epsilon
J_minus[i], _ = forward_propagation_n(X, Y, vector_to_dictionary(thetaminus))
gradapprox[i] = (J_plus[i] - J_minus[i]) / (2 * epsilon)
numerator = np.linalg.norm(grad - gradapprox)
denominator = np.linalg.norm(grad) + np.linalg.norm(gradapprox)
difference = numerator / denominator
if difference > 2e-7:
print("\033[93m" + "Backpropagation has errors! difference = " + str(difference) + "\033[0m")
else:
print("\033[92m" + "Backpropagation is correct! difference = " + str(difference) + "\033[0m")
return difference
if __name__ == "__main__":
X, Y, parameters = gradient_check_n_test_case()
cost, cache = forward_propagation_n(X, Y, parameters)
gradients = backward_propagation_n(X, Y, cache)
difference = gradient_check_n(parameters, gradients, X, Y)
Initial Output (with errors):
Backpropagation has errors! difference = 0.285093156781
After fixing errors in dW2 and db1:
dW2 = 1. / m * np.dot(dZ2, A1.T) # Corrected: 1.0 instead of 2
db1 = 1. / m * np.sum(dZ1, axis=1, keepdims=True) # Corrected: 1.0 instead of 4
Corrected Output:
Backpropagation is correct! difference = 1.18904178766e-07
References¶
- http://deeplearning.ai/
This note is based on Andrew Ng’s course. For beginners, feel free to correct any misunderstandings!
