使用MACE在Android上实现图像分类¶

export BAZEL_VERSION=0.13.1
mkdir /bazel && \
    cd /bazel && \
    wget https://github.com/bazelbuild/bazel/releases/download/$BAZEL_VERSION/bazel-$BAZEL_VERSION-installer-linux-x86_64.sh && \
    chmod +x bazel-*.sh && \
    ./bazel-$BAZEL_VERSION-installer-linux-x86_64.sh && \
    cd / && \
    rm -f /bazel/bazel-$BAZEL_VERSION-installer-linux-x86_64.sh

# 下载NDK r15c
cd /opt/ && \
    wget -q https://dl.google.com/android/repository/android-ndk-r15c-linux-x86_64.zip && \
    unzip -q android-ndk-r15c-linux-x86_64.zip && \
    rm -f android-ndk-r15c-linux-x86_64.zip

export ANDROID_NDK_VERSION=r15c
export ANDROID_NDK=/opt/android-ndk-${ANDROID_NDK_VERSION}
export ANDROID_NDK_HOME=${ANDROID_NDK}

# 添加到PATH
export PATH=${PATH}:${ANDROID_NDK_HOME}

apt-get install -y --no-install-recommends \
    cmake \
    android-tools-adb
pip install -i http://pypi.douban.com/simple/ --trusted-host pypi.douban.com setuptools
pip install -i http://pypi.douban.com/simple/ --trusted-host pypi.douban.com \
    "numpy>=1.14.0" \
    scipy \
    jinja2 \
    pyyaml \
    sh==1.12.14 \
    pycodestyle==2.4.0 \
    filelock

pip install -i http://pypi.douban.com/simple/ --trusted-host pypi.douban.com tensorflow==1.6.0

git clone https://github.com/XiaoMi/mace.git

cd mace/mace/examples/android/

#!/usr/bin/env bash

set -e -u -o pipefail

pushd ../../../

TARGET_ABI=armeabi-v7a

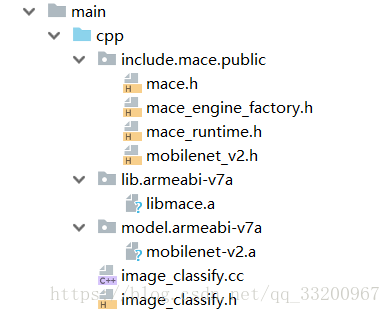

LIBRARY_DIR=mace/examples/android/macelibrary/src/main/cpp/
INCLUDE_DIR=$LIBRARY_DIR/include/mace/public/
LIBMACE_DIR=$LIBRARY_DIR/lib/$TARGET_ABI/

rm -rf $LIBRARY_DIR/include/
mkdir -p $INCLUDE_DIR

rm -rf $LIBRARY_DIR/lib/
mkdir -p $LIBMACE_DIR

rm -rf $LIBRARY_DIR/model/

python tools/converter.py convert --config=mace/examples/android/mobilenet.yml --target_abis=$TARGET_ABI
cp -rf builds/mobilenet/include/mace/public/*.h $INCLUDE_DIR
cp -rf builds/mobilenet/model $LIBRARY_DIR

bazel build --config android --config optimization mace/libmace:libmace_static --define neon=true --define openmp=true --define opencl=true --cpu=$TARGET_ABI
cp -rf mace/public/*.h $INCLUDE_DIR
cp -rf bazel-genfiles/mace/libmace/libmace.a $LIBMACE_DIR

popd

library_name: mobilenet
target_abis: [armeabi-v7a]
model_graph_format: code
model_data_format: code
models:
  mobilenet_v2:
    platform: tensorflow
    model_file_path: https://cnbj1.fds.api.xiaomi.com/mace/miai-models/mobilenet-v2/mobilenet-v2-1.0.pb
    model_sha256_checksum: 369f9a5f38f3c15b4311c1c84c032ce868da9f371b5f78c13d3ea3c537389bb4
    subgraphs:
      - input_tensors:
          - input
        input_shapes:
          - 1,224,224,3
        output_tensors:
          - MobilenetV2/Predictions/Reshape_1
        output_shapes:
          - 1,1001
    runtime: cpu+gpu
    limit_opencl_kernel_time: 0
    nnlib_graph_mode: 0
    obfuscate: 0
    winograd: 0

./build.sh

apt-get install docker.io

docker pull registry.cn-hangzhou.aliyuncs.com/xiaomimace/mace-dev

git clone https://github.com/XiaoMi/mace.git
cd mace/mace/examples/android/
# 修改build.sh和mobilenet.yml

docker run -it -v $PWD:/mace registry.cn-hangzhou.aliyuncs.com/xiaomimace/mace-dev

cd mace/mace/examples/android/
./build.sh

# For more information about using CMake with Android Studio, read the
# documentation: https://d.android.com/studio/projects/add-native-code.html

# Sets the minimum version of CMake required to build the native library.

cmake_minimum_required(VERSION 3.4.1)

include_directories(${CMAKE_SOURCE_DIR}/)
include_directories(${CMAKE_SOURCE_DIR}/src/main/cpp/include)
set(mace_lib ${CMAKE_SOURCE_DIR}/src/main/cpp/lib/armeabi-v7a/libmace.a)
set(mobilenet_lib ${CMAKE_SOURCE_DIR}/src/main/cpp/model/armeabi-v7a/mobilenet.a)
add_library (mace_lib STATIC IMPORTED)
set_target_properties(mace_lib PROPERTIES IMPORTED_LOCATION ${mace_lib})
add_library (mobilenet_lib STATIC IMPORTED)
set_target_properties(mobilenet_lib PROPERTIES IMPORTED_LOCATION ${mobilenet_lib})

add_library( # Sets the name of the library.
             mace_mobile_jni

             # Sets the library as a shared library.
             SHARED

             # Provides a relative path to your source file(s).
             src/main/cpp/image_classify.cc )

# Searches for a specified prebuilt library and stores the path as a
# variable. Because CMake includes system libraries in the search path by
# default, you only need to specify the name of the public NDK library
# you want to add. CMake verifies that the library exists before
# completing its build.

find_library( # Sets the name of the path variable.
              log-lib

              # Specifies the name of the NDK library that
              # you want CMake to locate.
              log )

# Specifies libraries CMake should link to your target library. You
# can link multiple libraries, such as libraries you define in this
# build script, prebuilt third-party libraries, or system libraries.

target_link_libraries( # Specifies the target library.
                       mace_mobile_jni
                       mace_lib
                       mobilenet_lib
                       # Links the target library to the log library
                       # included in the NDK.
                       ${log-lib} )

externalNativeBuild {
    cmake {
        cppFlags "-std=c++11 -fopenmp"
        abiFilters "armeabi-v7a"
    }
}

android {
    ...
    sourceSets {
        main {
            jniLibs.srcDirs = ["src/main/jniLibs"]
            jni.srcDirs = ['src/cpp']
        }
    }
}

package com.xiaomi.mace;

public class JniMaceUtils {

    static {
        System.loadLibrary("mace_mobile_jni");
    }

    public static native int maceMobilenetSetAttrs(int ompNumThreads, int cpuAffinityPolicy, int gpuPerfHint, int gpuPriorityHint, String kernelPath);
    public static native int maceMobilenetCreateEngine(String model, String device);
    public static native float[] maceMobilenetClassify(float[] input);
}

package com.example.myapplication;

import android.os.Environment;

import java.io.File;

public class InitData {
    public static final String[] DEVICES = new String[]{"CPU", "GPU"};
    public static final String[] MODELS = new String[]{"mobilenet_v1", "mobilenet_v2"};

    private String model;
    private String device = "";
    private int ompNumThreads = 4;
    private int cpuAffinityPolicy = 0;
    private int gpuPerfHint = 3;
    private int gpuPriorityHint = 3;
    private String kernelPath = Environment.getExternalStorageDirectory().getAbsolutePath() + File.separator + "mace";

    // Getters and setters
    public String getModel() { return model; }
    public void setModel(String model) { this.model = model; }
    public String getDevice() { return device; }
    public void setDevice(String device) { this.device = device; }
    public int getOmpNumThreads() { return ompNumThreads; }
    public void setOmpNumThreads(int ompNumThreads) { this.ompNumThreads = ompNumThreads; }
    public int getCpuAffinityPolicy() { return cpuAffinityPolicy; }
    public void setCpuAffinityPolicy(int cpuAffinityPolicy) { this.cpuAffinityPolicy = cpuAffinityPolicy; }
    public int getGpuPerfHint() { return gpuPerfHint; }
    public void setGpuPerfHint(int gpuPerfHint) { this.gpuPerfHint = gpuPerfHint; }
    public int getGpuPriorityHint() { return gpuPriorityHint; }
    public void setGpuPriorityHint(int gpuPriorityHint) { this.gpuPriorityHint = gpuPriorityHint; }
    public String getKernelPath() { return kernelPath; }
    public void setKernelPath(String kernelPath) { this.kernelPath = kernelPath; }

    public InitData() {
        model = MODELS[1];
        File file = new File(kernelPath);
        if (!file.exists()) file.mkdir();
    }
}

// 从相册选择图片
public static void use_photo(Activity activity, int requestCode) {
    Intent intent = new Intent(Intent.ACTION_PICK);
    intent.setType("image/*");
    activity.startActivityForResult(intent, requestCode);
}

// 获取图片路径
public static String get_path_from_URI(Context context, Uri uri) {
    String result;
    Cursor cursor = context.getContentResolver().query(uri, null, null, null, null);
    if (cursor == null) {
        result = uri.getPath();
    } else {
        cursor.moveToFirst();
        int idx = cursor.getColumnIndex(MediaStore.Images.ImageColumns.DATA);
        result = cursor.getString(idx);
        cursor.close();
    }
    return result;
}

// 压缩图片并转换为输入数据格式
public static float[] getScaledMatrix(Bitmap bitmap, int desWidth, int desHeight) {
    float[] floatValues = new float[desWidth * desHeight * 3];
    FloatBuffer floatBuffer = FloatBuffer.wrap(floatValues);
    int[] pixels = new int[desWidth * desHeight];
    Bitmap bm = Bitmap.createScaledBitmap(bitmap, desWidth, desHeight, false);
    bm.getPixels(pixels, 0, bm.getWidth(), 0, 0, desWidth, desHeight);

    for (int clr : pixels) {
        floatBuffer.put(((clr >> 16 & 0xFF) - 128f) / 128f);
        floatBuffer.put(((clr >> 8 & 0xFF) - 128f) / 128f);
        floatBuffer.put(((clr & 0xFF) - 128f) / 128f);
    }
    if (!bm.isRecycled()) bm.recycle();
    return floatBuffer.array();
}

// 按比例缩放图片
public static Bitmap getScaleBitmap(String filePath) {
    BitmapFactory.Options opt = new BitmapFactory.Options();
    opt.inJustDecodeBounds = true;
    BitmapFactory.decodeFile(filePath
