HarmonyOS Application Development - Recording Audio and Implementing Real - time Speech Recognition with WebSocket

Feature Introduction:¶

Record audio and obtain RAW audio format data in real-time. Use WebSocket to upload the data to the server and get real-time speech recognition results. For details, refer to the document: Using AudioCapturer to Develop Audio Recording Function (ArkTS). For more detailed interface information, please refer to the API documentation: AudioCapturer8+ and @ohos.net.webSocket (WebSocket Connection).

Key Knowledge Points:¶

Familiar with using AudioCapturer to record audio and obtain RAW format data in real-time.
Familiar with using WebSocket to upload audio data and obtain recognition results.
Familiar with the dynamic application method for sensitive permissions. The sensitive permission in this project is MICROPHONE.
For how to build a real-time speech recognition service, please refer to my other article: “Recognizes with Such High Accuracy, Real-time Speech Recognition Service”.

Environment:¶

API 9
DevEco Studio 4.0 Release
Windows 11
Stage Model
ArkTS Language

Required Permissions:¶

ohos.permission.MICROPHONE

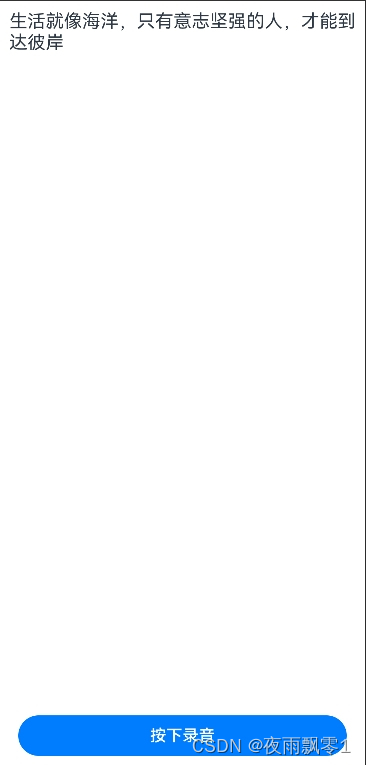

Effect Diagram:¶

Core Code:¶

src/main/ets/utils/Permission.ets is a utility for dynamic permission application:

import bundleManager from '@ohos.bundle.bundleManager';
import abilityAccessCtrl, { Permissions } from '@ohos.abilityAccessCtrl';

async function checkAccessToken(permission: Permissions): Promise<abilityAccessCtrl.GrantStatus> {
  let atManager = abilityAccessCtrl.createAtManager();
  let grantStatus: abilityAccessCtrl.GrantStatus;

  // Get the application's accessTokenID
  let tokenId: number;
  try {
    let bundleInfo: bundleManager.BundleInfo = await bundleManager.getBundleInfoForSelf(bundleManager.BundleFlag.GET_BUNDLE_INFO_WITH_APPLICATION);
    let appInfo: bundleManager.ApplicationInfo = bundleInfo.appInfo;
    tokenId = appInfo.accessTokenId;
  } catch (err) {
    console.error(`getBundleInfoForSelf failed, code is ${err.code}, message is ${err.message}`);
  }

  // Verify if the application has been granted the permission
  try {
    grantStatus = await atManager.checkAccessToken(tokenId, permission);
  } catch (err) {
    console.error(`checkAccessToken failed, code is ${err.code}, message is ${err.message}`);
  }

  return grantStatus;
}

export async function checkPermissions(permission: Permissions): Promise<boolean> {
  let grantStatus: abilityAccessCtrl.GrantStatus = await checkAccessToken(permission);

  if (grantStatus === abilityAccessCtrl.GrantStatus.PERMISSION_GRANTED) {
    return true;
  } else {
    return false;
  }
}

src/main/ets/utils/Recorder.ets is a recording utility class for audio recording and data acquisition:

import audio from '@ohos.multimedia.audio';
import { delay } from './Utils';

export default class AudioCapturer {
  private audioCapturer: audio.AudioCapturer | undefined = undefined;
  private isRecording: boolean = false;
  private audioStreamInfo: audio.AudioStreamInfo = {
    samplingRate: audio.AudioSamplingRate.SAMPLE_RATE_16000, // Audio sampling rate
    channels: audio.AudioChannel.CHANNEL_1, // Number of recording channels
    sampleFormat: audio.AudioSampleFormat.SAMPLE_FORMAT_S16LE,
    encodingType: audio.AudioEncodingType.ENCODING_TYPE_RAW  // Audio encoding type
  };
  private audioCapturerInfo: audio.AudioCapturerInfo = {
    // Use SOURCE_TYPE_VOICE_RECOGNITION for noise reduction. If the device does not support it, use SOURCE_TYPE_MIC
    source: audio.SourceType.SOURCE_TYPE_VOICE_RECOGNITION,
    capturerFlags: 0 // Audio capturer flags
  };
  private audioCapturerOptions: audio.AudioCapturerOptions = {
    streamInfo: this.audioStreamInfo,
    capturerInfo: this.audioCapturerInfo
  };

  // Initialization: Create instance and set event listeners
  constructor() {
    // Create AudioCapturer instance
    audio.createAudioCapturer(this.audioCapturerOptions, (err, capturer) => {
      if (err) {
        console.error(`Failed to create audio capturer, error code: ${err.code}, error message: ${err.message}`);
        return;
      }
      this.audioCapturer = capturer;
      console.info('Audio capturer created successfully');
    });
  }

  // Start audio capture
  async start(callback: (state: number, data?: ArrayBuffer) => void) {
    // Only start capture if state is one of STATE_PREPARED, STATE_PAUSED, or STATE_STOPPED
    const validStates = [audio.AudioState.STATE_PREPARED, audio.AudioState.STATE_PAUSED, audio.AudioState.STATE_STOPPED];
    if (validStates.indexOf(this.audioCapturer.state) === -1) {
      console.error('Failed to start recording');
      callback(audio.AudioState.STATE_INVALID);
      return;
    }
    // Start capture
    await this.audioCapturer.start();
    this.isRecording = true;
    const bufferSize = 1920;

    while (this.isRecording) {
      let buffer = await this.audioCapturer.read(bufferSize, true);
      if (buffer === undefined) {
        console.error('Failed to read audio data');
      } else {
        callback(audio.AudioState.STATE_RUNNING, buffer);
      }
    }
    callback(audio.AudioState.STATE_STOPPED);
  }

  // Stop capture
  async stop() {
    this.isRecording = false;
    // Only stop if state is RUNNING or PAUSED
    if (this.audioCapturer.state !== audio.AudioState.STATE_RUNNING && this.audioCapturer.state !== audio.AudioState.STATE_PAUSED) {
      console.warn('Capturer is not running or paused');
      return;
    }
    await delay(200);
    // Stop capture
    await this.audioCapturer.stop();
    if (this.audioCapturer.state.valueOf() === audio.AudioState.STATE_STOPPED) {
      console.info('Recording stopped');
    } else {
      console.error('Failed to stop recording');
    }
  }

  // Destroy instance and release resources
  async release() {
    // Do not release if state is RELEASED or NEW
    if (this.audioCapturer.state === audio.AudioState.STATE_RELEASED || this.audioCapturer.state === audio.AudioState.STATE_NEW) {
      return;
    }
    // Release resources
    await this.audioCapturer.release();
  }
}

Additional utility functions in src/main/ets/utils/Utils.ets (used for sleep waiting):

// Sleep function
export function delay(milliseconds: number) {
  return new Promise(resolve => setTimeout(resolve, milliseconds));
}

Add required permissions in src/main/module.json5 (under the module field). For field descriptions, add them to the respective string.json:

    "requestPermissions": [
      {
        "name": "ohos.permission.MICROPHONE",
        "reason": "$string:record_reason",
        "usedScene": {
          "abilities": [
            "EntryAbility"
          ],
          "when": "always"
        }
      }
    ]

Page code:

import abilityAccessCtrl, { Permissions } from '@ohos.abilityAccessCtrl';
import common from '@ohos.app.ability.common';
import webSocket from '@ohos.net.webSocket';
import AudioCapturer from '../utils/Recorder';
import promptAction from '@ohos.promptAction';
import { checkPermissions } from '../utils/Permission';
import audio from '@ohos.multimedia.audio';

// Permissions requiring dynamic application
const permissions: Array<Permissions> = ['ohos.permission.MICROPHONE'];
// Get application context
const context = getContext(this) as common.UIAbilityContext;

@Entry
@Component
struct Index {
  @State recordBtnText: string = 'Press to Record';
  @State speechResult: string = '';
  private offlineResult = '';
  private onlineResult = '';
  // Speech recognition WebSocket address
  private asrWebSocketUrl = "ws://192.168.0.100:10095";
  // Audio capturer instance
  private audioCapturer?: AudioCapturer;
  // WebSocket instance
  private ws;

  // Called when page is displayed
  async onPageShow() {
    // Check permission status
    let promise = checkPermissions(permissions[0]);
    promise.then((result) => {
      if (result) {
        // Initialize audio capturer if not already initialized
        if (this.audioCapturer == null) {
          this.audioCapturer = new AudioCapturer();
        }
      } else {
        this.reqPermissionsAndRecord(permissions);
      }
    });
  }

  // Called when page is hidden
  async onPageHide() {
    if (this.audioCapturer != null) {
      this.audioCapturer.release();
    }
  }

  build() {
    Row() {
      RelativeContainer() {
        // Display recognition result
        Text(this.speechResult)
          .id("resultText")
          .width('95%')
          .maxLines(10)
          .fontSize(18)
          .margin({ top: 10 })
          .alignRules({
            top: { anchor: '__container__', align: VerticalAlign.Top },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          });

        // Recording button
        Button(this.recordBtnText)
          .width('90%')
          .id("recordBtn")
          .margin({ bottom: 10 })
          .alignRules({
            bottom: { anchor: '__container__', align: VerticalAlign.Bottom },
            middle: { anchor: '__container__', align: HorizontalAlign.Center }
          })
          .onTouch((event) => {
            switch (event.type) {
              case TouchType.Down:
                console.info('Button pressed');
                // Check permission status
                let promise = checkPermissions(permissions[0]);
                promise.then((result) => {
                  if (result) {
                    // Start recording
                    this.startRecord();
                    this.recordBtnText = 'Recording...';
                  } else {
                    // Request permissions and record
                    this.reqPermissionsAndRecord(permissions);
                  }
                });
                break;
              case TouchType.Up:
                console.info('Button released');
                // Stop recording
                this.stopRecord();
                this.recordBtnText = 'Press to Record';
                break;
            }
          });
      }
      .height('100%')
      .width('100%');
    }
    .height('100%');
  }

  // Start recording
  startRecord() {
    this.setWebSocketCallback();
    this.ws.connect(this.asrWebSocketUrl, (err) => {
      if (!err) {
        console.log("WebSocket connection successful");
        // Send initial configuration
        let jsonData = '{"mode": "2pass", "chunk_size": [5, 10, 5], "chunk_interval": 10, ' +
          '"wav_name": "HarmonyOS", "is_speaking": true, "itn": false}';
        this.ws.send(jsonData);
        // Start audio capture
        this.audioCapturer.start((state, data) => {
          if (state === audio.AudioState.STATE_STOPPED) {
            console.info('Recording ended');
            // Send stop signal to server
            let jsonData = '{"is_speaking": false}';
            this.ws.send(jsonData);
          } else if (state === audio.AudioState.STATE_RUNNING) {
            // Send audio data
            this.ws.send(data, (err) => {
              if (err) {
                console.log("Failed to send audio data: " + JSON.stringify(err));
              }
            });
          }
        });
      } else {
        console.log("WebSocket connection failed: " + JSON.stringify(err));
      }
    });
  }

  // Stop recording
  stopRecord() {
    if (this.audioCapturer != null) {
      this.audioCapturer.stop();
    }
  }

  // Set WebSocket event callbacks
  setWebSocketCallback() {
    // Create WebSocket instance
    this.ws = webSocket.createWebSocket();
    // Handle incoming messages
    this.ws.on('message', (err, value: string) => {
      console.log("Received WebSocket message: " + value);
      let result = JSON.parse(value);
      let is_final = result['is_final'];
      let mode = result['mode'];
      let text = result['text'];
      if (mode === '2pass-offline') {
        this.offlineResult += text;
        this.onlineResult = '';
      } else {
        this.onlineResult += text;
      }
      this.speechResult = this.offlineResult + this.onlineResult;
      // Close connection if final result is received
      if (is_final) {
        this.ws.close();
      }
    });
    // Handle connection closed
    this.ws.on('close', () => {
      console.log("WebSocket connection closed");
    });
    // Handle errors
    this.ws.on('error', (err) => {
      console.log("WebSocket error: " + JSON.stringify(err));
    });
  }

  // Request permissions and start recording
  reqPermissionsAndRecord(permissions: Array<Permissions>): void {
    let atManager = abilityAccessCtrl.createAtManager();
    // Request permissions from user
    atManager.requestPermissionsFromUser(context, permissions).then((data) => {
      let grantStatus: Array<number> = data.authResults;
      let length: number = grantStatus.length;
      for (let i = 0; i < length; i++) {
        if (grantStatus[i] === 0) {
          // Permission granted
          console.info('Permission granted');
          if (this.audioCapturer == null) {
            this.audioCapturer = new AudioCapturer();
          }
        } else {
          promptAction.showToast({ message: 'Permission denied, required for recording' });
          return;
        }
      }
    }).catch((err) => {
      console.error(`Permission request failed: code ${err.code}, message: ${err.message}`);
    });
  }
}
