Implementing WeChat-Style Bottom Navigation with Fragments in Android

This is a small demo of a bottom navigation bar using Fragments.

Code for MainActivity

package com.example.dell.myapplication;

import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.ImageButton;

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

    private ImageButton weixin;
    private ImageButton contact;
    private ImageButton find;
    private ImageButton me;
    private ContactFragment contactFragment;
    private WeiXinFragment weiXinFragment;
    private FindFragment findFragment;
    private MeFragment meFragment;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        weixin = (ImageButton) findViewById(R.id.weixin1);
        contact = (ImageButton) findViewById(R.id.weixin2);
        find = (ImageButton) findViewById(R.id.weixin3);
        me = (ImageButton) findViewById(R.id.weixin4);

        weixin.setOnClickListener(this);
        contact.setOnClickListener(this);
        find.setOnClickListener(this);
        me.setOnClickListener(this);

        // Trigger the first button click
        weixin.performClick();
    }

    @Override
    public void onClick(View v) {
        cleanIcn();
        FragmentManager fragmentManager = getFragmentManager();
        FragmentTransaction transaction = fragmentManager.beginTransaction();
        switch (v.getId()) {
            case R.id.weixin1:
                if (weiXinFragment == null) {
                    weiXinFragment = new WeiXinFragment();
                }
                transaction.replace(R.id.fragment_container, weiXinFragment);
                weixin.setImageResource(R.drawable.weixin2);
                break;
            case R.id.weixin2:
                if (contactFragment == null) {
                    contactFragment = new ContactFragment();
                }
                transaction.replace(R.id.fragment_container, contactFragment);
                contact.setImageResource(R.drawable.weixin2);
                break;
            case R.id.weixin3:
                if (findFragment == null) {
                    findFragment = new FindFragment();
                }
                transaction.replace(R.id.fragment_container, findFragment);
                find.setImageResource(R.drawable.weixin2);
                break;
            case R.id.weixin4:
                if (meFragment == null) {
                    meFragment = new MeFragment();
                }
                transaction.replace(R.id.fragment_container, meFragment);
                me.setImageResource(R.drawable.weixin2);
                break;
        }
        transaction.commit();
    }

    private void cleanIcn() {
        weixin.setImageResource(R.drawable.weixin);
        contact.setImageResource(R.drawable.weixin);
        find.setImageResource(R.drawable.weixin);
        me.setImageResource(R.drawable.weixin);
    }
}

Corresponding activity_main.xml code

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/activity_main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.dell.myapplication.MainActivity">

    <LinearLayout
        android:id="@+id/ll_button"
        android:gravity="center_vertical"
        android:layout_alignParentBottom="true"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <ImageButton
            android:layout_weight="1"
            android:id="@+id/weixin1"
            android:background="@null"
            android:src="@drawable/weixin"
            android:layout_width="0dp"
            android:layout_height="wrap_content" />
        <ImageButton
            android:layout_weight="1"
            android:id="@+id/weixin2"
            android:background="@null"
            android:src="@drawable/weixin"
            android:layout_width="0dp"
            android:layout_height="wrap_content" />
        <ImageButton
            android:layout_weight="1"
            android:id="@+id/weixin3"
            android:background="@null"
            android:src="@drawable/weixin"
            android:layout_width="0dp"
            android:layout_height="wrap_content" />
        <ImageButton
            android:layout_weight="1"
            android:id="@+id/weixin4"
            android:background="@null"
            android:src="@drawable/weixin"
            android:layout_width="0dp"
            android:layout_height="wrap_content" />

    </LinearLayout>

    <LinearLayout
        android:orientation="vertical"
        android:layout_above="@id/ll_button"
        android:id="@+id/fragment_container"
        android:layout_width="match_parent"
        android:layout_height="match_parent">

    </LinearLayout>
</RelativeLayout>

Next is the Fragment code

Below are the Fragment Java codes, each corresponding to a layout.

package com.example.dell.myapplication;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.Toast;

public class WeiXinFragment extends Fragment {

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_wei_xin, container, false);
        Button button = (Button) view.findViewById(R.id.btn_weixin);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(getActivity(), "WeChat", Toast.LENGTH_SHORT).show();
            }
        });
        return view;
    }
}

package com.example.dell.myapplication;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.Toast;

public class ContactFragment extends Fragment {

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_contact, container, false);
        Button button = (Button) view.findViewById(R.id.btn_contact);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(getActivity(), "Contacts", Toast.LENGTH_SHORT).show();
            }
        });
        return view;
    }
}

package com.example.dell.myapplication;

import android.app.Fragment;
import android.os.Bundle;
import android.support.annotation.Nullable;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.Toast;

/**
 * Created by dell on 2017/8/3.
 */

public class FindFragment extends Fragment {

    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_find, container, false);
        Button button = (Button) view.findViewById(R.id.btn_find);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(getActivity(), "Discover", Toast.LENGTH_SHORT).show();
            }
        });
        return view;
    }
}

package com.example.dell.myapplication;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.Toast;

public class MeFragment extends Fragment {

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.fragment_me, container, false);
        Button button = (Button) view.findViewById(R.id.btn_me);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                Toast.makeText(getActivity(), "My", Toast.LENGTH_SHORT).show();
            }
        });
        return view;
    }
}

View Code

The following are the layout codes corresponding to the Java Fragment codes: fragment_wei_xin.xml

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.dell.myapplication.WeiXinFragment">

    <Button
        android:id="@+id/btn_weixin"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:text="WeChat" />

</FrameLayout>

fragment_contact.xml

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.dell.myapplication.ContactFragment">

    <Button
        android:id="@+id/btn_contact"
        android:layout_gravity="center"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Contacts" />

</FrameLayout>

fragment_find.xml

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.dell.myapplication.FindFragment">

    <Button
        android:id="@+id/btn_find"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:text="Discover" />

</FrameLayout>

fragment_me.xml

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="com.example.dell.myapplication.MeFragment">

    <Button
        android:id="@+id/btn_me"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center"
        android:text="My" />

</FrameLayout>

Adding Click Events to Fragments

Here’s how to add click events to each Fragment buttons. Note that Fragment click events are slightly different from Activity:

To find views, you must use the obtained View object, not directly findViewById.
To get the context, you can’t use this directly; use getActivity() instead.

@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
                         Bundle savedInstanceState) {
    View view = inflater.inflate(R.layout.fragment_me, container, false);
    // Find views through the obtained View
    Button button = (Button) view.findViewById(R.id.btn_me);
    button.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            // Use getActivity() instead of this keyword
            Toast.makeText(getActivity(), "My", Toast.LENGTH_SHORT).show();
        }
    });
    return view;
}

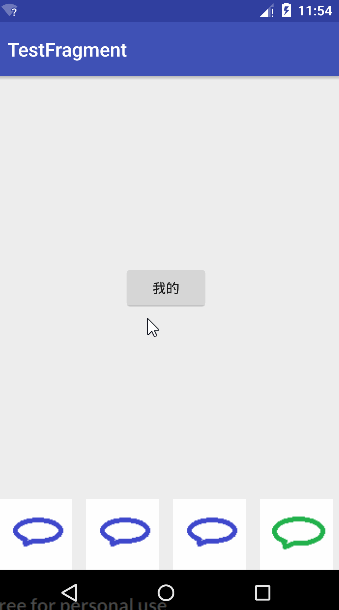

Effect Diagram
